PRODUCT
WET (RH-656/4W)

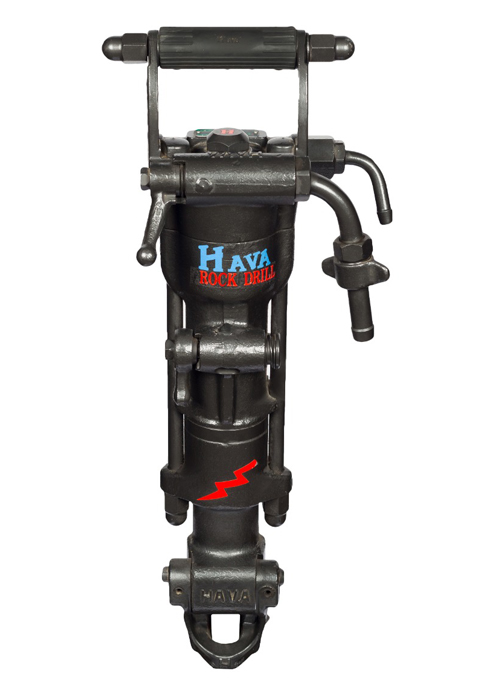

HAVA ROCK DRILL - WET (RH-656/4W) with Spade Handle
This water flushed model is used for horizontal or inclined in dustless drilling in conjuction with a pusher leg such as in underground mines and tunnels.
Applications:
- In underground mines and tunnels
- Horizontal / Inclined drilling
Product Feature:
- Rifle Bar Rotation
- Kick Latch Retainer
- Valve for Air Flushing
TECHNICAL SPECIFICATIONS
| Model | Weight | Air Requirement | Piston | Piston | Impact | Drilling | Hose Connection | ||
|---|---|---|---|---|---|---|---|---|---|
| kg | (at 6 bar) m3/Min | (87 PSI) cfm) | Diameter MM | Stroke mm | Rate Blows/Min | Rate MM/Min | Air MM | Water MM | |
| WET | 26 | 2.9 | 101 | 65 | 60 | 2050 | 410 | 19 | 12.7 |
*Drilling Rate of 33mm Drill bit at an air pressure of 6kg/cm2. Due to varying Rock conditions, actual results may be greater or less than those listed.
